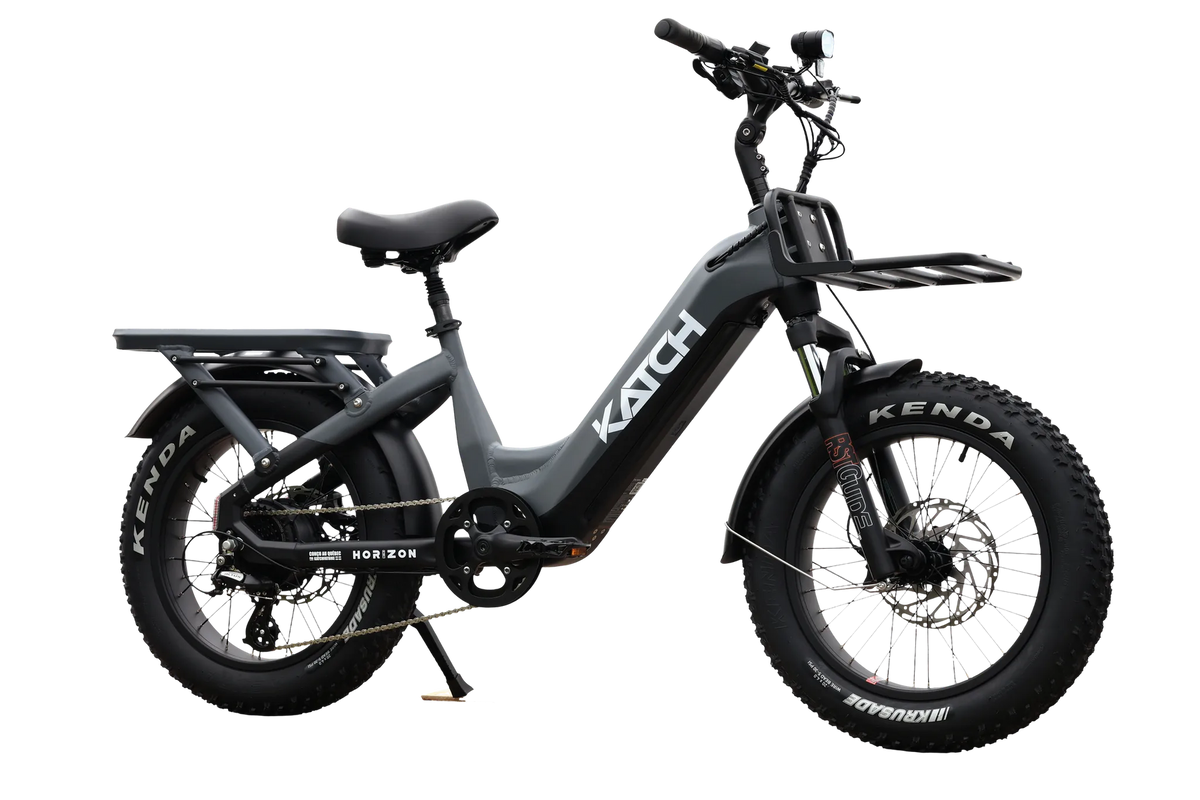

Flagship 20-inch fat tire e-bike
Mini Horizon
Built for Toronto. Built for the long run.
$2,899 CAD
Reserve now with a $200.00 deposit.
Final payment due before delivery.
Premium fat tire e-bike for commuting, work, delivery and weekend riding. Compact, powerful and built for Canadian conditions.
Serious capability.
Refined for the city.
Compact, powerful and designed for real-world use. The Mini Horizon gives you the freedom to go further, in the city and beyond.
- 1600WPeak power
- 95 NmTorque
- 48V 20Ah960Wh LG battery
- 20 x 4"Fat tires
- BafangFull system

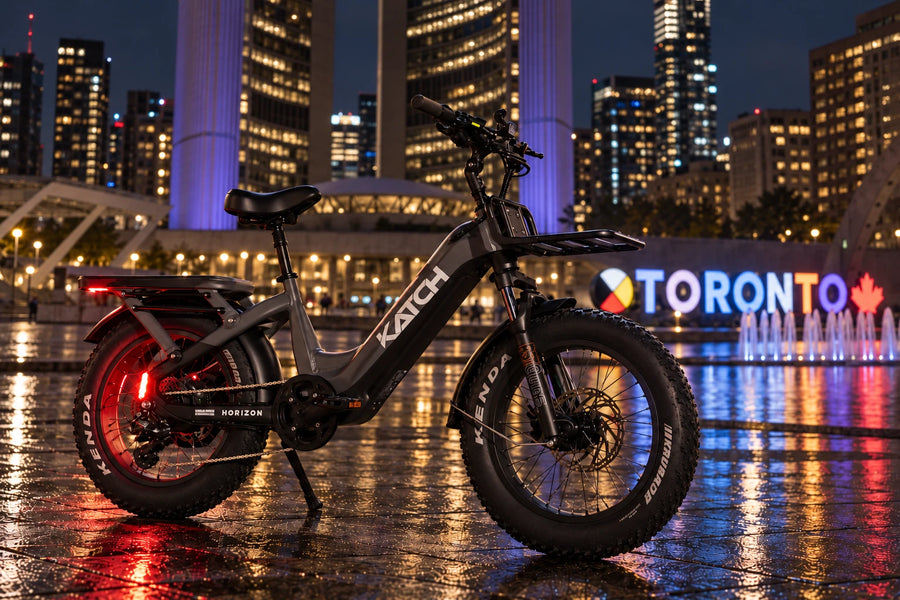

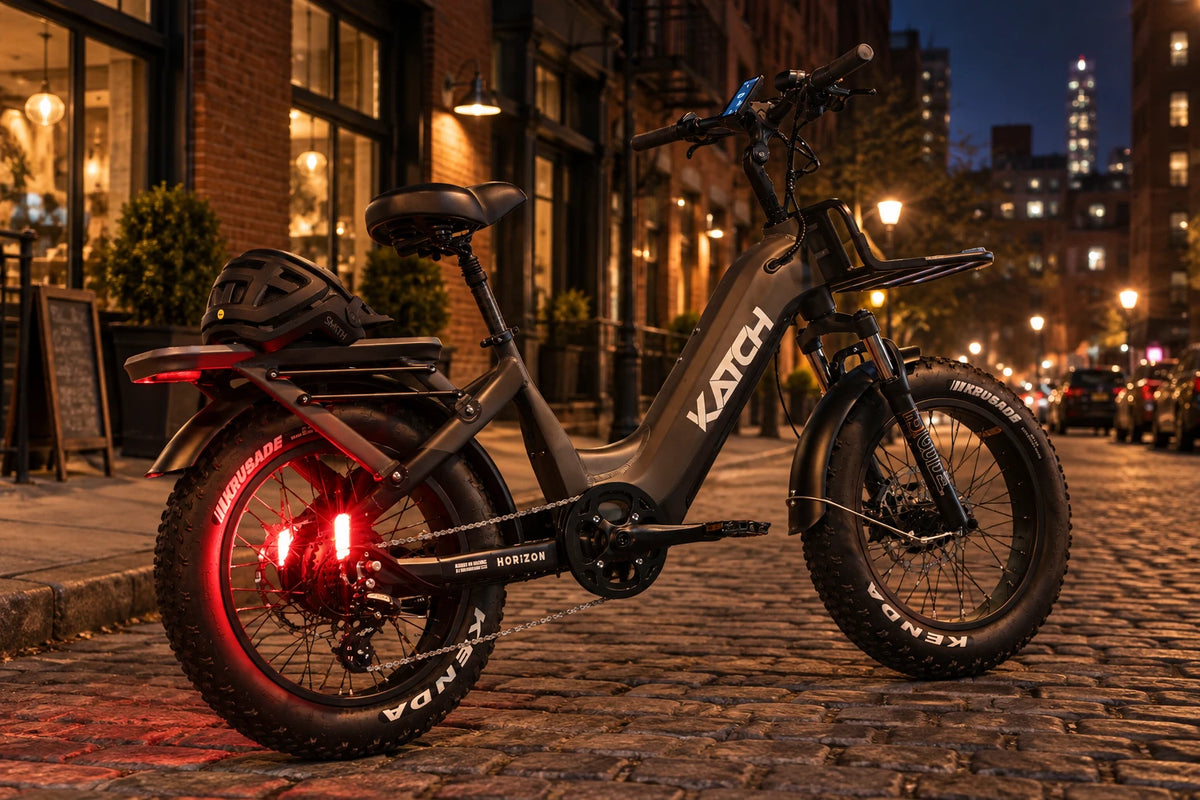

Built for Toronto. Day or night.
A premium e-bike for commuting, work and everything the city throws at you.
Built around year five, not day one.
Quality components chosen for long-term use, easy maintenance and real-world reliability.
Range that fits real life.
Up to 95 km in real-world use.
Go further with a high-capacity 48V 20Ah (960Wh) LG battery, or double it with the Katch+ dual battery (1920Wh). Range varies with rider weight, terrain, temperature and assist level.
| Average speed | Estimated range | |
|---|---|---|
| 16 km/h | ~95 km | |
| 25 km/h | ~75 km | |
| 32 km/h | ~60 km |
Estimates with the standard 960Wh battery. Katch+ dual battery roughly doubles these figures.
Full specifications
- Motor

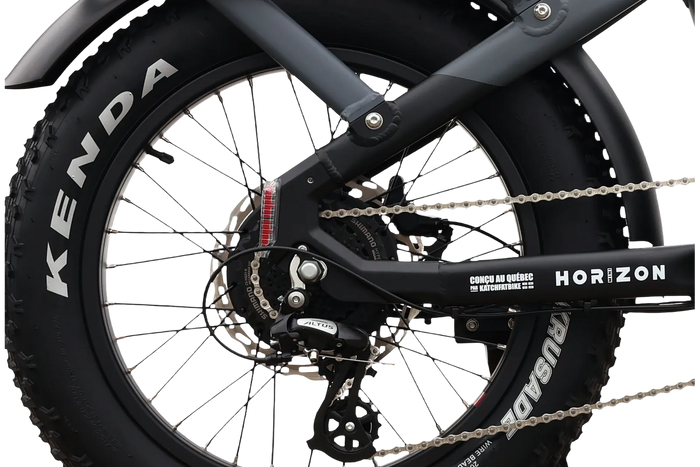

- Bafang G063 rear hub, 1000 W nominal / 1600 W peak
- Torque
- 95 Nm
- Riding modes
- Road 500 W / 32 km/h · Off-road 1000 W / up to 55 km/h
- Controller
- Bafang 28A
- Battery

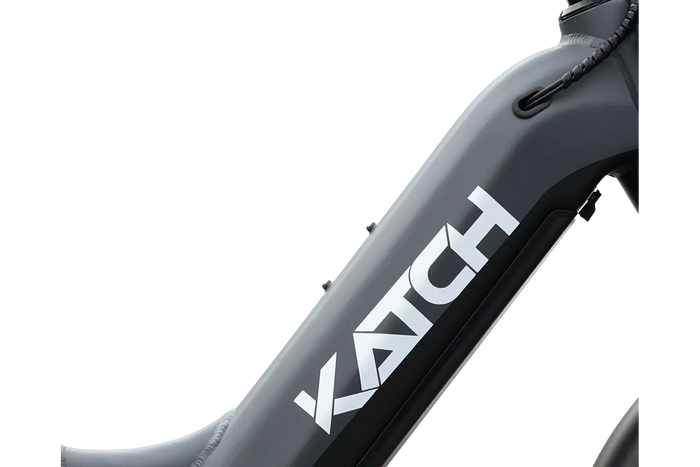

- LG cells, 48V 20Ah (960Wh), UL certified
- Katch+ option
- Dual battery 48V 40Ah (1920Wh)
- Range
- ~95 km at 16 km/h · ~60 km at 32 km/h
- Display

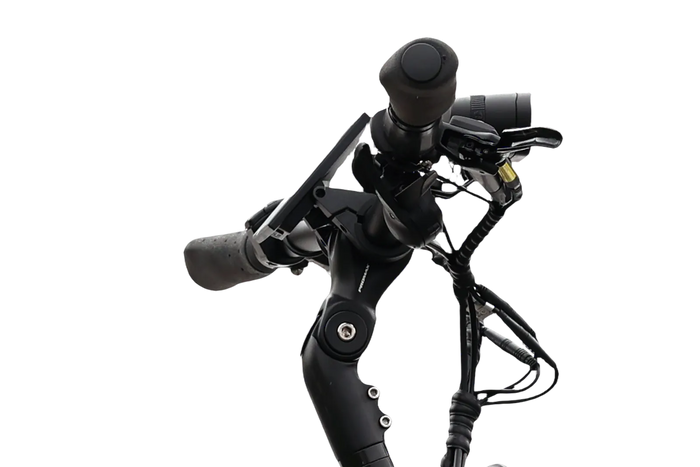

- Bafang C010
- Tires
- Kenda Krusade 20" x 4"
- Brakes

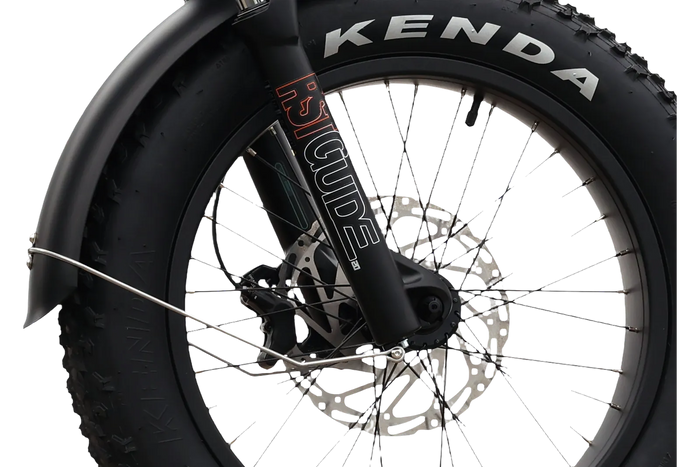

- Tektro E3940 4-piston hydraulic, 180 mm rotors
- Drivetrain
- Shimano Altus 8-speed, 11–32T cassette
- Frame
- Heavy-duty 6061 aluminium
- Fork
- RST suspension fork
- Seat post
- Suspension seat post
- Weight
- 30 kg (without battery) · 36 kg (with battery)
- Max load
- 136 kg (300 lb)
- Warranty
- 2 years

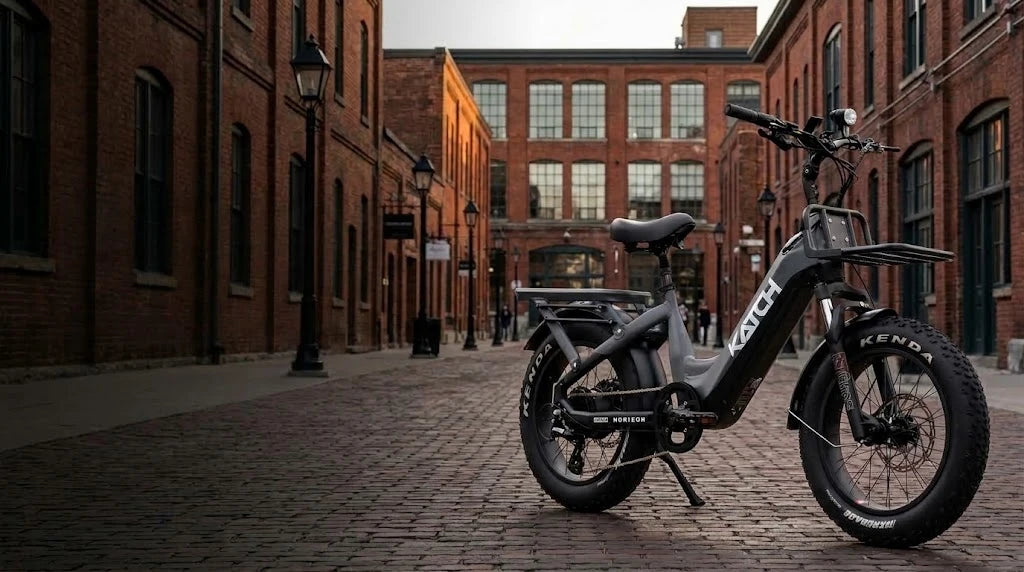

Made for Toronto streets.

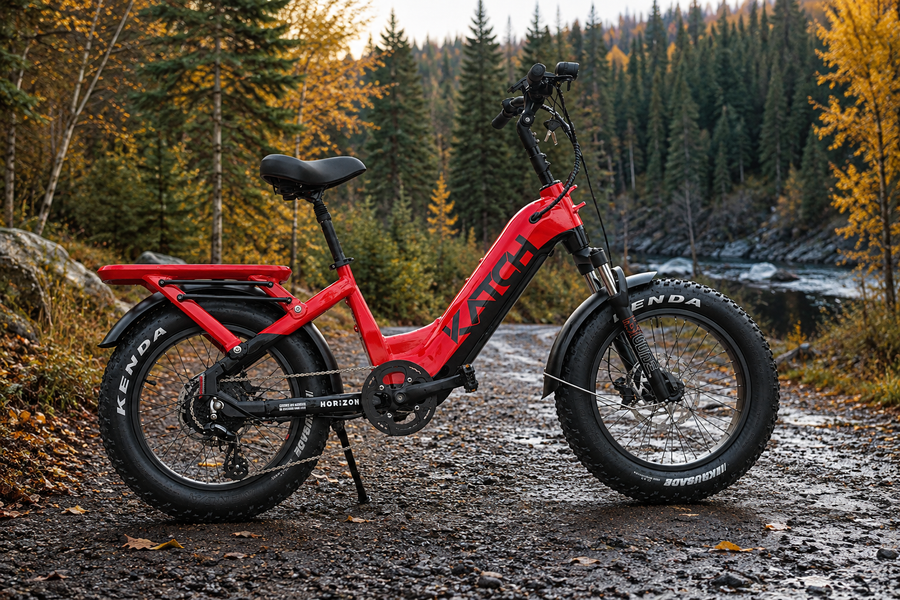

One bike. Many ways to ride.
Service at your door
At-home service across
Toronto & the GTA.
Our mobile team comes to you for service, maintenance and repairs. No need to load your bike into a car. Keep riding, we'll handle the rest.
What's included.
Everything you need to hit the road.
- Front rack

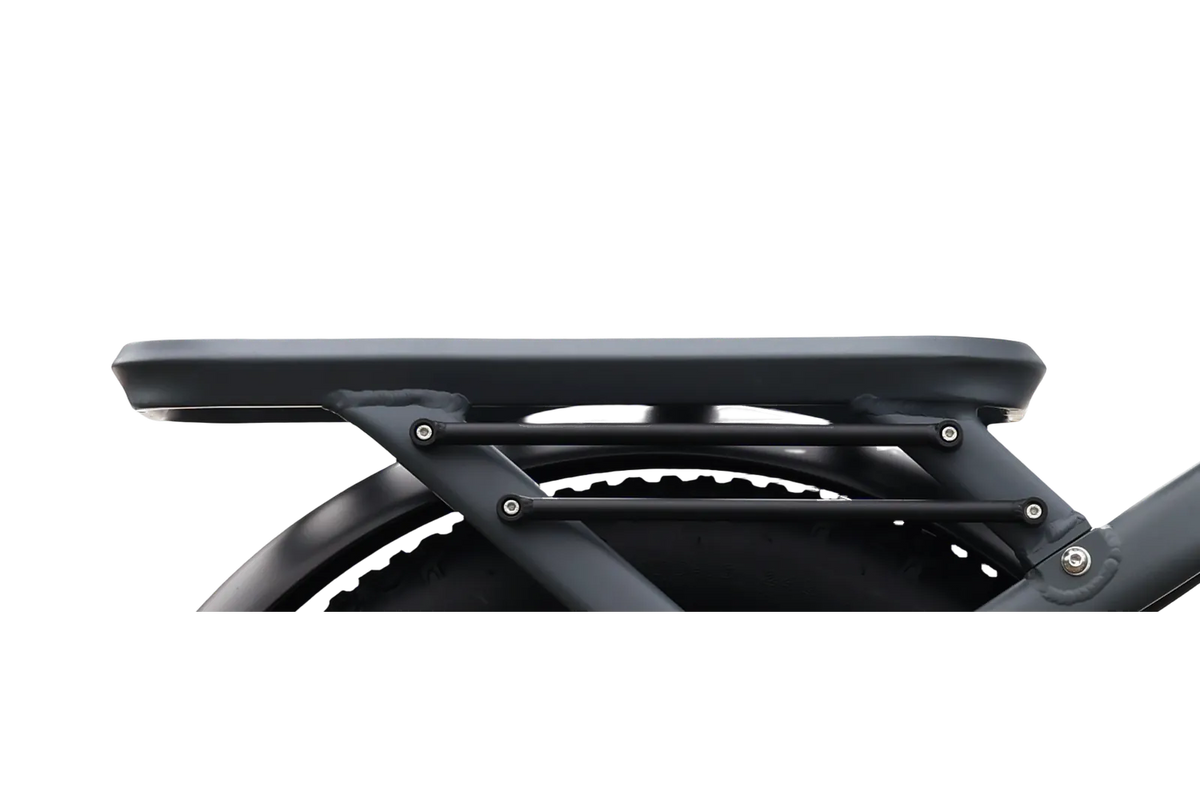

- Rear rack
- Aluminium fenders
- Front & rear lights
- Suspension fork
- Suspension seat post
- 48V charger
- Kickstand
Compare before you decide.
Four models. Built for different ways to ride.
What riders say.
Real feedback from Mini Horizon owners.
“Wow, I finally got my Mini Horizon yesterday and took it out today on the Parcours des Anses. So satisfied, it's exactly the height I was looking for.”
“The Mini Horizon matches my needs in every way: the design, the weight and the dual battery! I'm more than ready to ride this new machine!”
“After a full day of testing, the Mini Horizon's drivetrain is much more powerful on climbs. A good compromise between the Explorer and the Horizon ST.”
Reviews from the Katch Québec owners community, translated from French.
Frequently asked questions.
Ask us a questionWhat is the real-world range of the Mini Horizon?
With the standard 48V 20Ah (960Wh) LG battery, expect about 95 km at 16 km/h, 75 km at 25 km/h and 60 km at 32 km/h. Range depends on rider weight, terrain, temperature and assist level. The Katch+ dual battery (1920Wh) roughly doubles it.
Is the Mini Horizon street legal in Ontario?
Yes. Road mode limits the motor to 500 W and 32 km/h for roads and bike lanes (riders 16+, helmet required). Off-road mode unlocks 1000 W and up to 55 km/h for private property and off-road terrain only, never on public roads, bike lanes or multi-use paths.
Is the Mini Horizon good for winter?
The 20 x 4 inch Kenda Krusade fat tires give extra grip and stability on cold, wet roads and light snow. For icy conditions we recommend winter tires, and storing and charging the battery indoors at room temperature.
How does the reservation work?
You reserve your Mini Horizon today with a deposit. The balance of the bike's price is due before delivery. Contact us anytime for details on timing and payment options.
What does the warranty cover?
Every Mini Horizon comes with a 2-year warranty, parts in stock and real support from real people in the GTA.
How does at-home service work?
Our mobile team comes to your home across Toronto and the GTA for tune-ups, maintenance and repairs, with parts on site. No need to load your bike into a car.
Ready to meet your Katch?
See the Mini Horizon in person and take a test ride in Toronto. Our team will help you find the right bike for your needs.
